Basic size of mm

d	343.154
D	450.85
T	66.675

The basic rated load is kN

trends C	935
static state Co	2200

Fatigue load limit Pu	180

Rated rotation speed is r/min

Refer to the speed	900
limit speed	1300

quality	28
model	LM361649A/610
series	LM361600

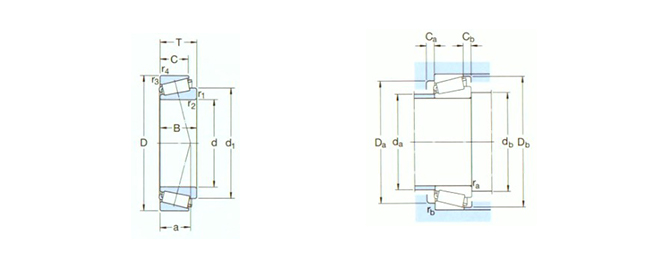

Dimensions are mm

d	343.154
d1 ～	394
B	66.675
C	52.388
r1,2 min	8.5
r3,4 min	3.5
a	75

Shoulder gear and chamfer size mm

Da max	365
db min	385
Da min	417
Da max	433
Db min	434
Ca min	12
Cb min	14
ra max	8
rb max	3

Calculation coefficient

e	0.35
Y	1.7
Yo	0.9
