Basic size of mm

d	220
D	400
T	114

The basic rated load is kN

trends C	1610
static state Co	2700

Fatigue load limit Pu	232

Rated rotation speed is r/min

Refer to the speed	1100
limit speed	1500

quality	60
model	32244J2
ISO335 dimension series (ABMA)	-

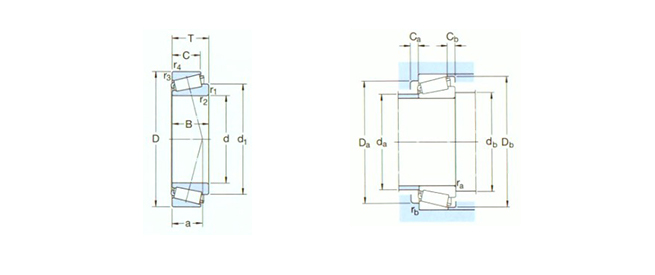

Dimensions are mm

d	220
d1 ～	306
B	108
C	90
r1,2 min	5
r3,4 min	4
a	95

Shoulder gear and chamfer size mm

Da max	253
db min	242
Da min	334
Da max	383
Db min	379
Ca min	13
Cb min	24
ra max	4
rb max	3

Calculation coefficient

e	0.43
Y	1.4
Yo	0.8
