Basic size of mm

d	140
D	210
B	95
C	94

The basic rated load is kN

trends C	644
static state Co	1120

Fatigue load limit Pu	127
rated speed	600
quality	11

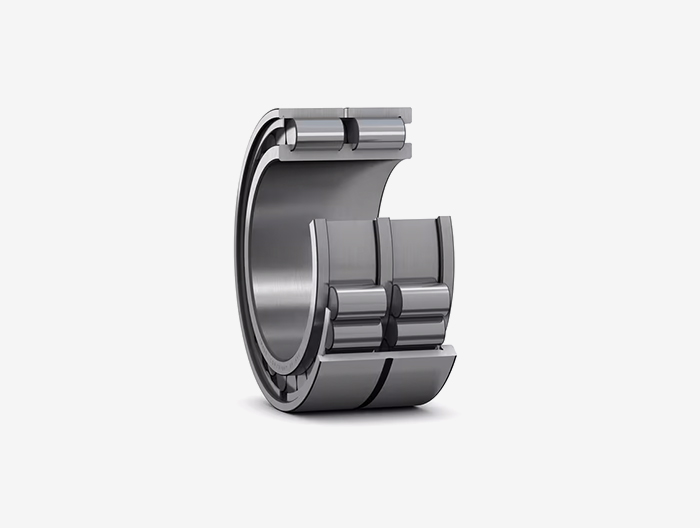

model	NNF5028ADA-2LSV

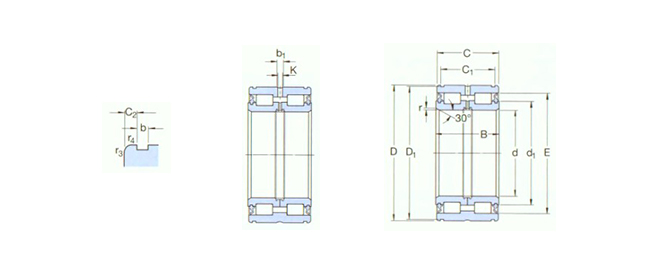

Dimensions are mm

d	140
d1 ～	167
D1 ～	206
E	195.5
C1 +0,2	83.2
C2	5.4
b	5.2
b1	7
k	4

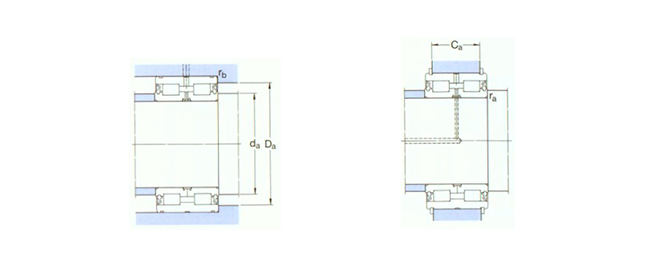

Shoulder gear and chamfer size ^{1) mm}

r min	1.8
r3,4 min	0.6
da min	147
das3)	162
Da max	205
Ca1 -0,2	77
Ca2 -0,2	73
ra max	1
rb max	0.6

Applicable stop ring ²⁾

Model number Seeger	SW210
DIN471	210×5
