Basic size of mm

d	120
D	180
B	80
C	79

The basic rated load is kN

trends C	429
static state Co	750

Fatigue load limit Pu	86.5
rated speed	700
quality	6.9
model	NNF5024ADA-2LSV

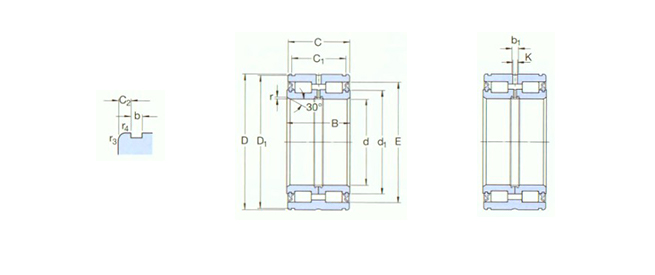

Dimensions are mm

d	120
d1 ～	141
D1 ～	176
E	164
C1 +0,2	71.2
C2	3.9
b	4.2
b1	6
k	3.5

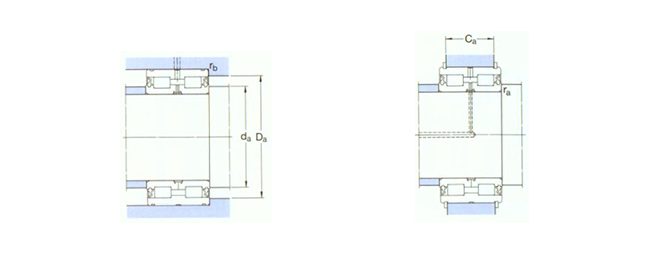

Shoulder gear and chamfer size ^{1) mm}

r min	1.8
r3,4 min	0.6
da min	127
das3)	138
Da max	175
Ca1 -0,2	65
Ca2 -0,2	63
ra max	1
rb max	0.6

Applicable stop ring ²⁾

Model number Seeger	SW180
DIN471	180×4
