Basic size of mm

d	380
D	560
B	243

The basic rated load is kN

trends C	4680
static state Co	9150

Fatigue load limit Pu	735

Rated rotation speed is r/min

Refer to the speed	480
limit speed	600

quality	200
model	NNCF5076CV

Dimensions are mm

d	380
d1 ～	431
D1 ～	504
E	521
b1	9.4
k	5
r1,2 min	5
s1)	11

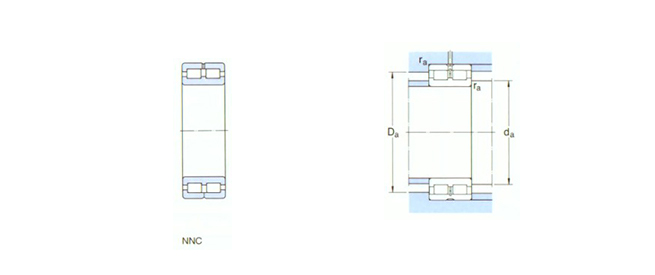

Shoulder gear and chamfer size mm

da min	403
das2) Suggested value	420
Da max	537
ra max	4
