Basic size of mm

d	80
D	125
B	60

The basic rated load is kN

trends C	308
static state Co	455

Fatigue load limit Pu	58.5

Rated rotation speed is r/min

Refer to the speed	2400
limit speed	3000

quality	2.59
model	NNCF5016CV

Dimensions are mm

d	80
d1 ～	95
D1 ～	111
E	116.99
b1	5
k	3.5
r1,2 min	1.1
s1)	3.5

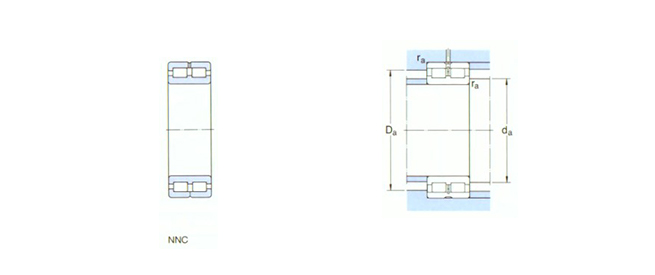

Shoulder gear and chamfer size mm

da min	86
das2) Suggested value	92
Da max	119
ra max	1
