Basic size of mm

d	560
D	750
B	112

The basic rated load is kN

trends C	3080
static state Co	6700

Fatigue load limit Pu	500

Rated rotation speed is r/min

Refer to the speed	320
limit speed	400

quality	140
model	NCF29/560V

Dimensions are mm

d	560
d1 ～	628
D1 ～	700
E	718
r1,2 min	5
r3,4 min	5
s1)	7

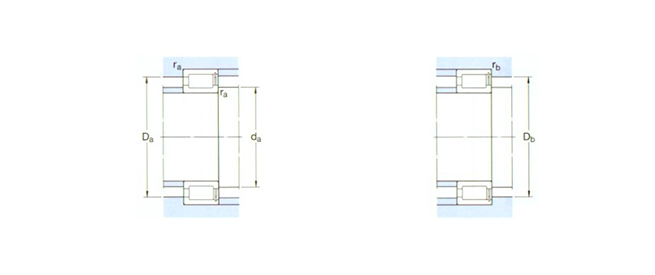

Shoulder gear and chamfer size mm

da min	578
das2) Suggested value	617
Da max	732
Db max	732
ra max	4
rb max	4
