Basic size of mm

d	380
D	560
B	135

The basic rated load is kN

trends C	2510
static state Co	4550

Fatigue load limit Pu	380

Rated rotation speed is r/min

Refer to the speed	480
limit speed	600

quality	110
model	NCF3076CV

Dimensions are mm

d	380
d1 ～	431
D1 ～	504
E	521
r1,2 min	5
r3,4 min	5
s1)	14

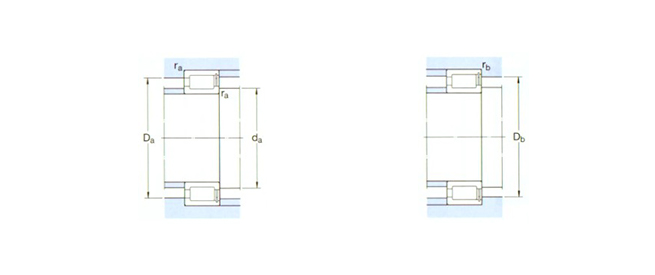

Shoulder gear and chamfer size mm

da min	398
das2) Suggested value	420
Da max	542
Db max	542
ra max	4
rb max	4
