Basic size of mm

d	150
D	225
B	56

The basic rated load is kN

trends C	457
static state Co	710

Fatigue load limit Pu	80

Rated rotation speed is r/min

Refer to the speed	1300
limit speed	1600

quality	7.5
model	NCF3030CV

Dimensions are mm

d	150
d1 ～	170
D1 ～	198
E,F	206
r1,2 min	2.1
r3,4 min	1.1
s1)	7

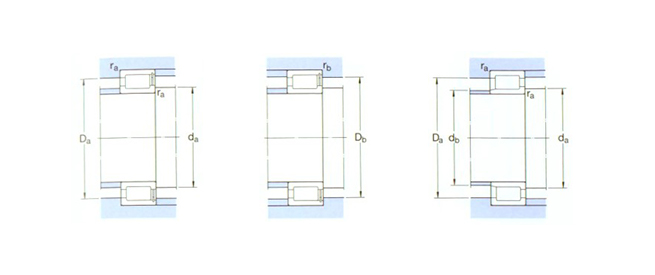

Shoulder gear and chamfer size mm

da min	161
das2) Suggested value	167
db max	-
Da max	214
Db max	234
ra max	2
rb max	1
