Basic size of mm

d	60
D	95
B	26

The basic rated load is kN

trends C	106
static state Co	146

Fatigue load limit Pu	18.3

Rated rotation speed is r/min

Refer to the speed	3400
limit speed	4000

quality	0.69
model	NCF3012CV

Dimensions are mm

d	60
d1 ～	71
D1 ～	82
E,F	86.7
r1,2 min	1.1
r3,4 min	1.1
s1)	2

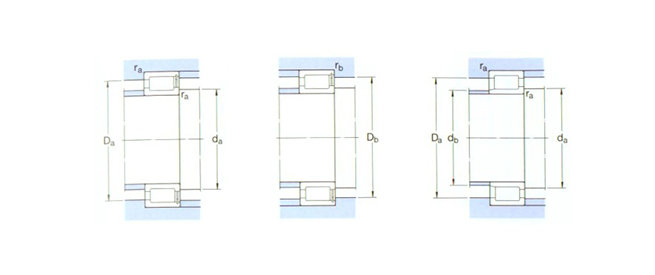

Shoulder gear and chamfer size mm

da min	66
das2) Suggested value	68.9
db max	-
Da max	89
Db max	91
ra max	1
rb max	1
