Basic size of mm

d	85
D	180
B	41

The basic rated load is kN

trends C	340
static state Co	335

Fatigue load limit Pu	41.5

Rated rotation speed is r/min

Refer to the speed	4000
limit speed	4800

Specification standard holder	4.8

model

Standard holder	*NJ317ECP
Other holder 1)	J,M

Dimensions are mm

d	85
d1 ～	117
D1 ～	153
F,E	108
r1,2 min	3
r3,4 min	3
s1)	2.3

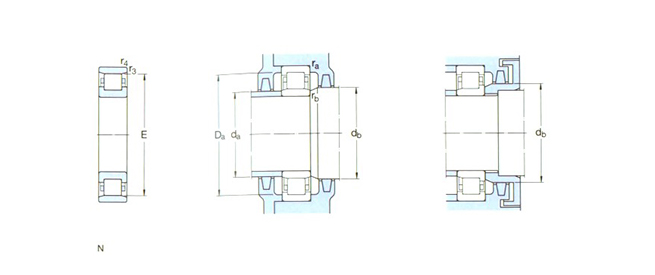

Shoulder gear and chamfer size mm

da min	99
Da max	105
db,Da min	120
Da max	166
ra max	2.5
rb max	2.5

Calculation coefficient

kr	0.15

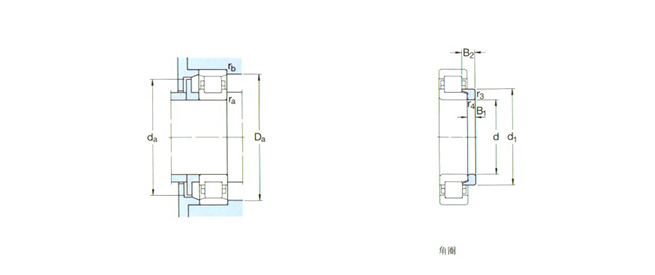

Corner circle

model	HJ317EC
quality	0.55
Size B1	-
Size B2	-
