cylindrical roller bearing NJ2305ECP

Model:NJ2305ECP

Brand:SKF

cylindrical roller bearing NJ2305ECP d=25、D=62、B=24,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

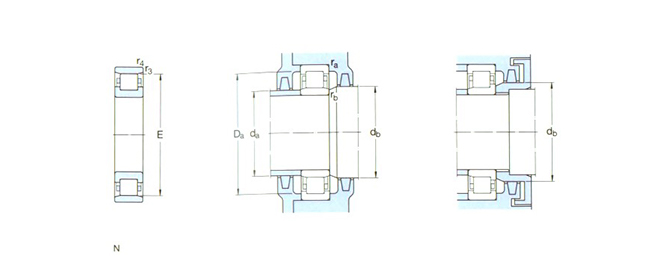

Technical Drawing
Param Print

Basic size of mm

d 25
D 62
B 24

The basic rated load is kN

trends C 64
static state Co 55

Fatigue load limit
Pu
6.95

Rated rotation speed is r/min

Refer to the speed 12000
limit speed 15000

Specification standard holder 0.39

model

Standard holder *NJ2305ECP
Other holder 1) ML

Dimensions are mm

d 25
d1
38.1
D1
50.7
F,E 34
r1,2
min
1.1
r3,4
min
1.1
s1) 2.3

Shoulder gear and chamfer size mm

da
min
32
Da
max
32
db,Da
min
40
Da
max
55
ra
max
1
rb
max
1

Calculation coefficient

kr 0.25

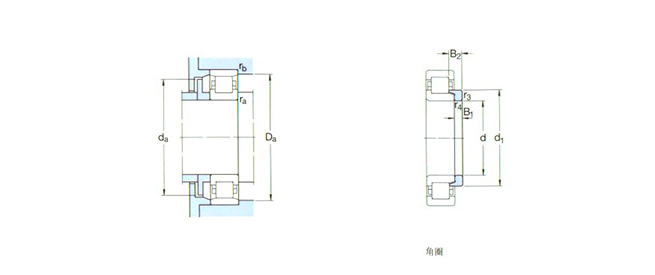

Corner circle

model HJ2305EC
quality 0.025
Size B1 4
Size B2 8
