Basic size of mm

d	180
D	280
B	74

The basic rated load is kN

trends C	95.6
static state Co	40

Fatigue load limit Pu	1.34

Rated rotation speed is r/min

Refer to the speed	4500
limit speed	2800

Mass kg	16
model	13036

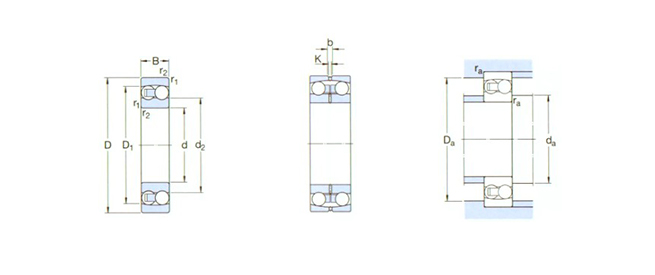

Dimensions are mm

d	180
d2 ～	212
D1 ～	249
b	13.9
k	7.5
r1,2 min	2.1

Shoulder gear and chamfer size mm

da min	191
Da max	269
ra max	2

Calculation coefficient

e	0.25
Y1	2.5
Y2	3.9
Y0	2.5
