Basic size of mm

d	110
D	200
B	38

The basic rated load is kN

trends C	88.4
static state Co	39

Fatigue load limit Pu	1.6

Rated rotation speed is r/min

Refer to the speed	6700
limit speed	4300

Mass kg	5.15

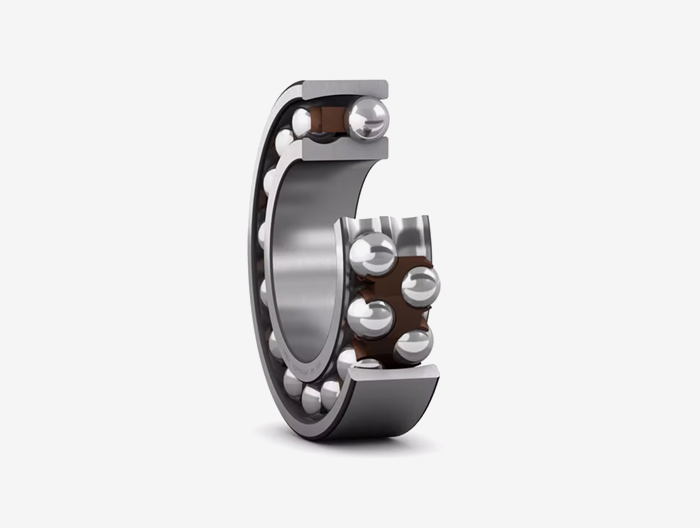

model

Column hole	1222
conical bore	1222K

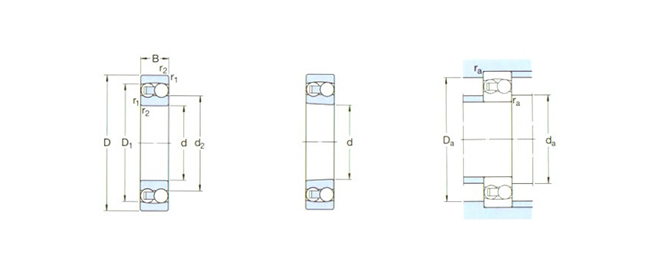

Dimensions are mm

d	110
d2 ～	140
D1 ～	176
r1,2 min	2.1

Shoulder gear and chamfer size mm

da min	122
Da max	188
ra max	2

Calculation coefficient

e	0.17
Y1	3.7
Y2	5.7
Y0	4
