Basic size of mm

d	70
D	150
B	63.5

The basic rated load is kN

trends C	153
static state Co	125

Fatigue load limit Pu	5

Limit rotational speed is r/min

With dust cover bearing	4000
sealed bearing	-

Mass kg	5.05

Model number ²⁾

With dust cover bearing	3314A-2Z
Bearings with sealing rings	-

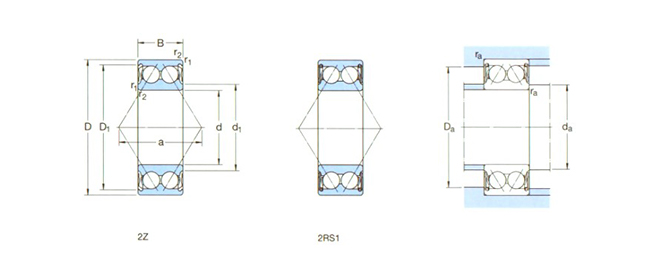

Dimensions are mm

d	70
d1 ～	84.2
D1 ～	139
r1,2 min	2.1
a	89

Shoulder gear and chamfer size mm

da min	82
Da max	84
Da max	138
ra max	2
