Basic size of mm

d	70
D	150
B	63.5

The basic rated load is kN

trends C	153
static state Co	125

Fatigue load limit Pu	5

Rated rotation speed is r/min

Refer to the speed	4000
limit speed	4000

Mass kg	5.05

Model number ²⁾

Metal holder	3314A
Nylon holder	-

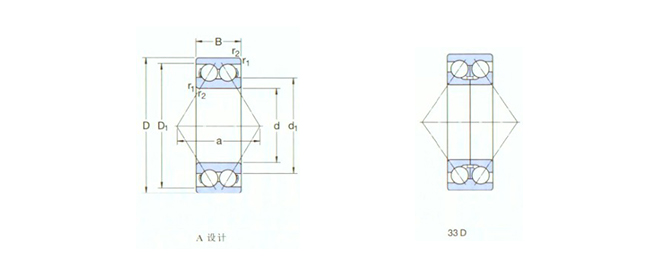

Dimensions are mm

d	70
d1 ～	84.2
D1 ～	139
r1,2 min	2.1
a	89

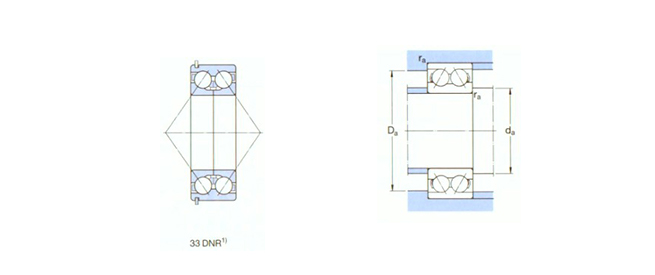

Shoulder gear and chamfer size mm

da min	82
Da max	138
ra max	2
