Basic size of mm

d	40
D	68
B	15

The basic rated load is kN

trends C	14
static state Co	10.8

Fatigue load limit Pu	0.49

Rated rotation speed is r/min

Refer to the speed	22000
limit speed	11000

Mass kg	0.19
model	W6008-2Z

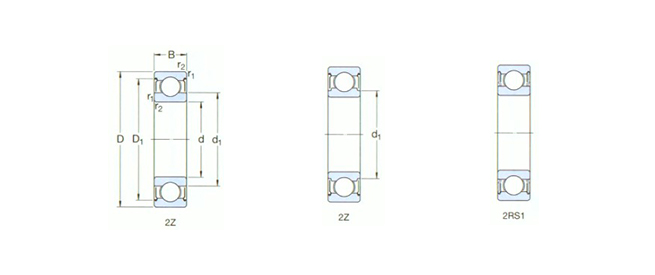

Dimensions are mm

d	40
d1 ～	49.2
D1 ～	62.5
r1,2 min	1

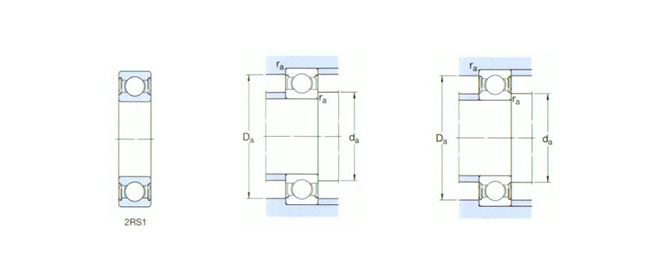

Shoulder gear and chamfer size mm

da min	44.6
Da max	63.4
ra max	1

Calculation coefficient

kr	0.025
fo	15
