Basic size of mm

d	150
D	225
B	35

The basic rated load is kN

trends C	125
static state Co	125

Fatigue load limit Pu	3.9

Rated rotation speed is r/min

Refer to the speed	6000
Limit speed 1)	3000

Mass kg	4.8

model

Both sides are sealed	6030-2Z
One side is sealed	6030-Z

Dimensions are mm

d	150
d1 ～	174
d2 ～	-
D2 ～	205
r1,2 min	2.1

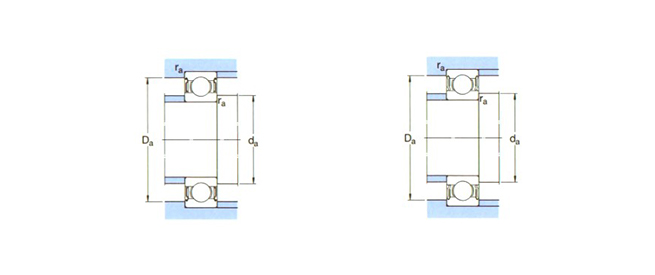

Shoulder gear and chamfer size mm

da min	160
Da max	-
Da max	215
ra max	2

Calculation coefficient

kr	0.025
fo	16
