Basic size of mm

d	70
D	150
B	35

The basic rated load is kN

trends C	111
static state Co	68

Fatigue load limit Pu	2.75

Rated rotation speed is r/min

Refer to the speed	-
Limit speed 1)	3000

Mass kg	2.5

model

Both sides are sealed	*6314-2RS1
One side is sealed	*6314-RS1

Dimensions are mm

d	70
d1 ～	95
D2 ～	130
r1,2 min	2.1

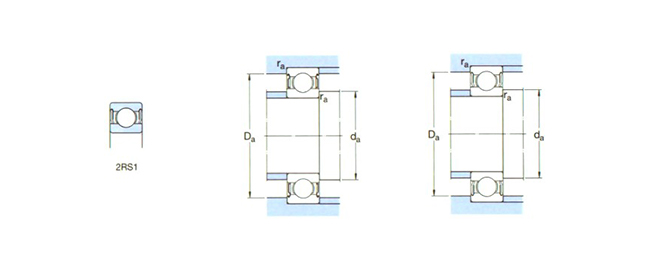

Shoulder gear and chamfer size mm

da min	82
Da max	138
ra max	2

Calculation coefficient

kr	0.03
fo	13
