Basic size of mm

d	15
D	42
B	13

The basic rated load is kN

trends C	11.9
static state Co	5.4

Fatigue load limit Pu	0.228

Rated rotation speed is r/min

Refer to the speed	-
Limit speed 1)	12000

Mass kg	0.082

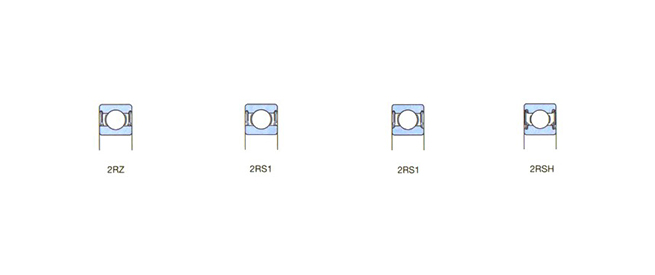

model

Both sides are sealed	*6302-2RSH
One side is sealed	*6302-RSH

Dimensions are mm

d	15
d1 ～	-
d2 ～	21.1
D2 ～	36.3
r1,2 min	1

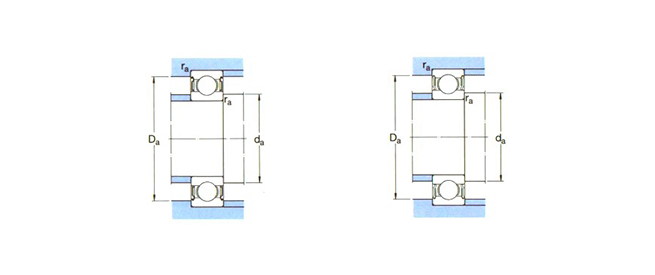

Shoulder gear and chamfer size mm

da min	20.6
Da max	21
Da max	36.4
ra max	1

Calculation coefficient

kr	0.03
fo	12
