Basic size of mm

d	10
D	30
B	9

The basic rated load is kN

trends C	5.4
static state Co	2.36

Fatigue load limit Pu	0.1

Rated rotation speed is r/min

Refer to the speed	56000
Limit speed 1)	28000

Mass kg	0.032

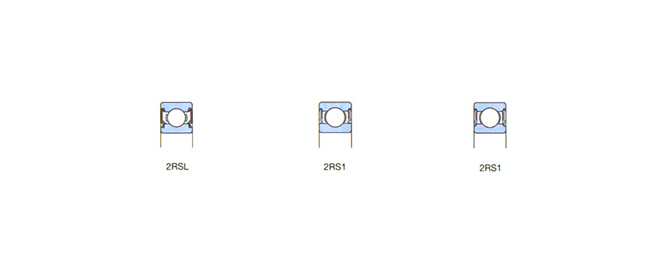

model

Both sides are sealed	*6200-2RSL
One side is sealed	*6200-RSL

Dimensions are mm

d	10
d1 ～	-
d2 ～	15.2
D2 ～	24.8
r1,2 min	0.6

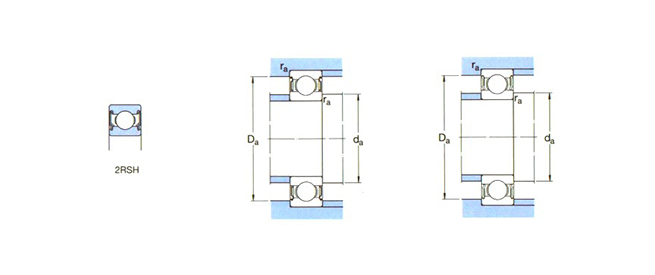

Shoulder gear and chamfer size mm

da min	14.2
Da max	15
Da max	25.8
ra max	0.6

Calculation coefficient

kr	0.025
fo	13
