Moving rated load Ca

Moving rated load Ca	5638

Static rated load Coa

Static rated load Coa	17852

Rigidity kgf/μm

Rigidity kgf/μm	79

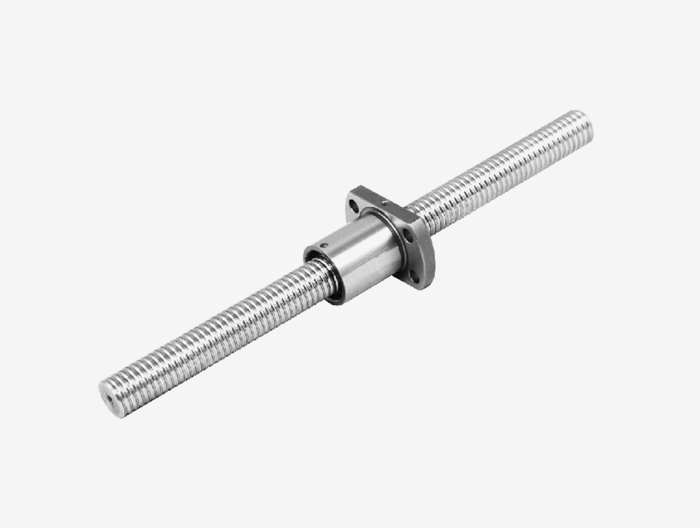

model

model	SFH05010-3.8

diameter of axle d

diameter of axle d	48

helical pitch I

helical pitch I	10

Pearl diameter Da

Pearl diameter Da	6.35

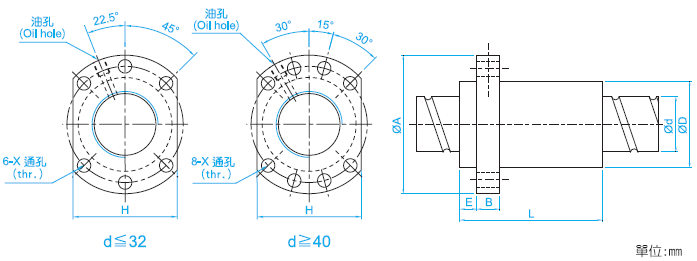

Nut size

D	75
A	110
E	10.5
B	18
L	60
W	93
H	85
X	11
Q	M8
n	3.8x1
